45 barg/450 °C → 10 barg/210 °C
Worked example duty
Boiler auxiliaries · Steam conditioning
PRDS — pressure reducing and desuperheating station
A PRDS (pressure reducing and desuperheating station) drops steam from boiler conditions to a process or auxiliary header — 45 barg/450 °C down to 10 barg/210 °C — by throttling and injecting spray water, typically 15–20 % of the inlet steam flow. Arrow Energy Co., Ltd. engineers and supplies PRDS packages for biomass and sugar-mill steam systems.
≈ 19 % of inlet steam flow
Spray-water demand
10–15 °C above saturation
Minimum outlet superheat
≈ 4:1 per nozzle stage
Spray-nozzle turndown
01 — Function
What a PRDS does in the steam system
One station, two duties: drop the pressure, then kill the surplus superheat.
A boiler generates steam at one set of conditions — in a typical Thai biomass or sugar-mill plant, 45 barg and 450 °C at the superheater outlet — while every consumer downstream of the turbine wants something lower: process evaporators at 1.5–3 barg, pan-stage and auxiliary headers at 8–10 barg, soot-blower headers at 17–25 barg, deaerator pegging steam near atmospheric. A PRDS (pressure reducing and desuperheating station) bridges the gap in two stages inside one packaged assembly: a pressure-reducing valve throttles the steam to header pressure, and a spray-water injection section downstream condenses the excess superheat out of it. Throttling alone is not enough — it is a constant-enthalpy process, so 45 barg/450 °C steam let down to 10 barg is still at roughly 440 °C, far above what gaskets, process equipment and thin-walled header piping are rated for.
Within the boiler pressure parts and auxiliaries scope, the PRDS sits between the main steam line (upstream: superheater outlet or turbine extraction) and the consuming header (downstream: process, soot blower, or deaerator pegging supply). Its sizing fixes the spray-water draw on the feed pumps and the controllability of every consumer on the header, so it is engineered as part of the steam balance, not bought as a catalogue valve.
02 — Mass balance
The spray-water arithmetic, worked through
Desuperheating is an enthalpy balance — three numbers from the steam tables settle it.
How much spray water does a PRDS need?
Enough water that the mixture's enthalpy equals the target outlet enthalpy. For 45 barg/450 °C steam conditioned to 10 barg/210 °C with 105 °C spray water, the balance gives 0.19 kg of water per kg of inlet steam — about 19 %. The spray water evaporates and becomes steam, so the station delivers more steam than it receives.
Write the mass and energy balance around the station, with ṁ₁ the inlet steam, ṁw the spray water, and outlet flow ṁ₁ + ṁw:
ṁ₁·h₁ + ṁw·hw = (ṁ₁ + ṁw)·h₂ ⇒ ṁw/ṁ₁ = (h₁ − h₂)/(h₂ − hw)
| Stream | Condition | Enthalpy, kJ/kg |
|---|---|---|
| Inlet steam h₁ | 45 barg (46 bar a), 450 °C | ≈ 3,323 |
| Outlet steam h₂ | 10 barg (11 bar a), 210 °C (Tsat ≈ 184 °C) | ≈ 2,861 |
| Spray water hw | 105 °C, from feedwater line | ≈ 440 |
| Spray ratio ṁw/ṁ₁ | (3,323 − 2,861) / (2,861 − 440) | 0.19 |
| Per 10 t/h inlet steam | spray water 1.9 t/h → outlet steam | 11.9 t/h |
DESIGN BASIS — ILLUSTRATIVE CALCULATION, NOT A GUARANTEE · steam-table values rounded to the nearest kJ/kg
Three practical consequences follow directly from the arithmetic. First, the spray water becomes product steam, so header capacity is inlet flow times 1.19 — undersize the downstream pipe and it chokes at nameplate. Second, spray-water quality matters: 1.9 t/h of water carrying its dissolved solids into the steam ends up as deposit on downstream surfaces, so spray water is taken from the boiler feedwater line after the deaerator, never from raw or softened water. Third, the colder the spray water, the less of it you need — but the harder the thermal shock on the injection nozzle and pipe liner, which is why feedwater at 105–130 °C is the normal source.
03 — Control
Superheat margin, sensor placement and mixing length
The loop only works when the sensor sees dry, mixed steam.
Why must the PRDS outlet stay 10–15 °C above saturation?
Because temperature control near saturation is blind. While droplets are still evaporating, the mixture sits at saturation temperature no matter how much extra water is injected — the sensor signal stops responding to the spray valve. Holding the outlet setpoint at least 10–15 °C above saturation keeps the process in the region where temperature actually measures enthalpy, so the loop stays stable.
At 10 barg, saturation is about 184 °C, so the minimum controllable setpoint is roughly 195–200 °C; the worked example's 210 °C leaves a comfortable 26 °C of superheat. Chasing saturated steam with a spray-type PRDS invites water carry-over, hammering in the header, and erosion of the first bend downstream. Consumers that genuinely need saturated steam get it from a separate flash or saturating vessel, not by over-spraying.
Layout matters as much as tuning. Droplets need 0.1–0.3 s to evaporate, which at typical header velocities of 30–40 m/s means 8–12 m of straight pipe between the injection point and the temperature sensor — the usual rule is a sensor at 10–15 pipe diameters minimum, with no bends, branches or valves in between. A sensor mounted close to the nozzle is wetted by unevaporated spray, reads saturation, and drives the loop to under-spray: the classic symptom is a header that runs 30–50 °C hotter than its indicated temperature, discovered when downstream gaskets fail.
04 — Valves
Valve selection: noise on the steam side, cavitation on the water side
Each of the two valves fails in its own characteristic way.

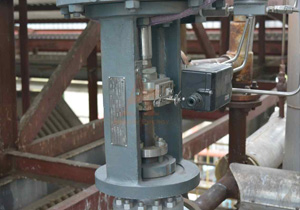

Steam pressure-reducing valve. Dropping 45 barg to 10 barg across a single seat releases enough mechanical power into turbulence to generate 100+ dBA a metre from the pipe. Sizing to IEC 60534-8-3 noise-prediction methods, multi-stage or drilled-cage trim that divides the pressure drop, and a downstream pipe schedule checked for acoustic fatigue bring the installation to a workable 85 dBA specification at 1 m. Outlet velocity is held below about 0.3 Mach in the valve outlet and downstream expander; above that, noise rises steeply and trim life falls. Combined-type conditioning valves that inject spray water inside the valve outlet are compact and suit steady loads; separate valve-plus-spray-pipe stations give longer mixing length and easier maintenance, and are our default for sugar-mill process headers with strong load swings.
Spray-water control valve. The quietly abused component. Spray water arrives at feed-pump discharge pressure — 55–60 barg in the example plant — and must be throttled to just above the 10 barg header. That 45+ bar drop across a small valve at 105–130 °C sits squarely in cavitation territory: vapour cavities form at the vena contracta and collapse on the trim, eating standard plugs in months. The remedies are anti-cavitation multi-stage trim, hardened (Stellite-faced) internals, and where the plant layout allows, taking spray water from an interstage bleed of the feed pump instead of final discharge. Turndown is bounded by atomisation: a plain mechanical nozzle covers about 4:1 on water flow, so stations for wide-range duties use multiple staged nozzles, variable-area spray assemblies, or steam-assisted atomisation. Below minimum controllable spray flow the correct design response is a low-load branch, not a leaking valve at 2 % opening.
05 — Applications
Where PRDS stations earn their keep in biomass and sugar plants
Steam conditioning is what makes one boiler serve many consumers.
The two duties we engineer most often:
- Soot-blower steam conditioning. A soot blower header typically wants 17–25 barg with 20–30 °C of superheat — enough superheat that condensate cannot form in the lances and thermally shock or waterhammer the tube banks being cleaned, but not so hot that blowing steam erodes tube surfaces. A dedicated PRDS off the main steam line, with a generous warm-up drain system, is the standard arrangement; blowing is intermittent, so the station cycles from zero to full flow in seconds and the spray system must be sized for that step, not for an average.
- Process headers in sugar mills. Exhaust steam from the mill turbines normally feeds the evaporator station; the PRDS on the live-steam line is the make-up and back-up path that holds the process header when turbine load shifts or a machine trips. It is sized for full process demand — effectively a turbine-bypass — and its response speed decides whether a turbine trip becomes a pan-station stoppage. For an integrated sugar and bagasse plant, we model the PRDS in the whole-plant steam balance, because its spray draw loads the feed pumps exactly when the boiler is also swinging.
Scope of supply is the complete station: reducing and spray valves, injection assembly and pipe liner, straight-length spool, safety valve sized to the downstream design pressure per ASME Section I / B31.1 requirements, temperature and pressure instrumentation tied into the boiler instrumentation and control system, and commissioning with the loop tuned against measured step response. Materials follow the temperature: carbon steel (SA 106) downstream where conditioned steam stays below its service limit, alloy grades on the hot inlet side, drawn from the same stock and welding qualifications as our boiler pressure parts fabrication. Guaranteed conditioning performance — outlet temperature band, controllable range — is stated per project after the technical assessment, on a stated basis (inlet conditions, spray-water temperature, load range).
FAQ
Engineering questions, answered
How much spray water does a PRDS consume?
From an enthalpy balance: reducing steam from 45 barg/450 °C to 10 barg/210 °C with 105 °C spray water needs about 0.19 kg of water per kg of inlet steam, so 10 t/h of inlet steam leaves as roughly 11.9 t/h of conditioned steam. Spray demand of 15–20 % of inlet flow is typical for this class of duty.
Why must a PRDS outlet keep 10–15 °C of superheat?
The outlet temperature controller needs measurable superheat to work with. Within about 10 °C of saturation, water droplets survive in the flow, the temperature sensor reads saturation regardless of spray valve position, and the loop loses feedback. Setting the outlet 10–15 °C above saturation keeps control stable and the pipework dry.
Why is the temperature sensor placed 10 to 15 pipe diameters downstream?
Spray droplets need residence time to evaporate — typically 0.1 to 0.3 seconds of flow, which at header velocities means 8 to 12 metres of straight pipe. A sensor closer than about 10 pipe diameters is wetted by unevaporated droplets and reads low, driving the control loop to under-spray and overheat the header.
What limits PRDS turndown?
Spray atomisation. A single spray nozzle atomises well over roughly a 4:1 water-flow range; below that, coarse droplets fall out and pool in the pipe. Steam-side turndown is also bounded by the reducing valve's controllable travel. Wide-range duties use multi-nozzle or variable-area spray assemblies, or a separate low-load PRDS branch.
Where are PRDS stations used in a biomass or sugar plant?
Typical services: conditioning boiler steam for soot-blower headers at around 17–25 barg with 20–30 °C superheat, feeding process headers in sugar mills at 1.5–10 barg, supplying deaerator pegging steam, and turbine-bypass duty that dumps full boiler flow to the condenser or process header during trips and start-up.
