1.2–1.5 mm
Sheet thickness, roll-formed CS
ESP components · Collecting side
Collecting electrodes: profiles, alignment and replacement
Collecting electrodes are the earthed plates on which an ESP deposits its dust — roll-formed C, sigma or ZT profiles in 1.2–1.5 mm carbon steel, 6–15 m tall at 300 or 400 mm gas-passage spacing. Held straight within ±5 mm, they carry the whole electrical field; misaligned, they collapse it.
6–15 m
Plate heights
300 / 400 mm
Gas-passage spacing
±5 mm
Alignment tolerance, full height
01 — Function
What the collecting electrode does in the field
Half the capacitor, all of the collecting area — the plate is where the Deutsch equation happens.
In electrostatic precipitator design, the collecting electrodes are the earthed side of the high-voltage system: vertical steel plates hung in rows that form gas passages 300 or 400 mm wide, with the discharge electrodes centred between them. Every square metre of plate is collecting area A in the Deutsch-Anderson equation — our bagasse design basis carries 3,888 m² of it across four fields for 96.67 % collection at SCA 75.7 s/m. Charged dust migrates to the plate at 2–15 cm/s, gives up its charge through the dust layer, and holds until the rapping blow shears it into the hopper.
The plate therefore has three jobs at once: present a flat, stable electrical boundary so the field can run near spark-over; conduct the collected layer's charge to earth within the 10⁴–10¹¹ Ω·cm resistivity window; and transmit rapping acceleration to its full surface without permanent distortion. Profile geometry, sheet thickness and suspension design each serve all three.
02 — Profiles
Roll-formed plate profiles: C, sigma, ZT
Thin sheet made stiff by folding — the profile is the engineering.
Collecting plates are roll-formed from 1.2–1.5 mm carbon steel coil. Flat sheet that thin would flutter in the gas stream and bow under its own weight at 6–15 m of height; the roll-formed folds turn it into a column stiff in both bending axes. The folded edges also do electrical work: they shield a quiet zone along the plate surface where rapped dust can slide down with less re-entrainment, and they stiffen the panel so rapping energy arrives at the far corner as acceleration rather than as flexure.
| Profile | Sheet thickness | Typical plate height | Character | Where used |
|---|---|---|---|---|
| C-profile | 1.2–1.5 mm | 6–12 m | Simple section, edge channels shield the dust layer | General biomass and industrial duty; widest replacement demand |
| Sigma profile | 1.2–1.5 mm | 8–15 m | Double-fold section, higher stiffness per kg | Tall fields and 400 mm spacing where span is greatest |
| ZT profile | 1.2–1.5 mm | 6–15 m | Z-and-T interlocking edges form a near-continuous wall | Heavy dust loads; good sheet-like dust release under rapping |
| OEM-replica sections | to original spec | per original | Roll-formed to the original maker's section and hole pattern | Replacement internals in other manufacturers' ESPs |
Panels are hung from the casing roof on hooks or bolted hangers, located by guides at the bottom, and struck through a rapping bar that ties a row of panels to one rapping system anvil. Free thermal growth matters: a 12 m plate grows roughly 20 mm between ambient and 180 °C operating temperature, so the suspension must locate the plate without clamping it.
Spacing is a system choice, not a plate choice. 300 mm passages give more collecting area per cubic metre of casing and work with 72 kV-class supplies; 400 mm passages halve the passage count, tolerate thicker dust layers and coarse misalignment better, and repay a 90–110 kV supply with higher migration velocity per volt of headroom. Retrofits that widen spacing must therefore budget for new transformer rectifier sets, not just new plates.
03 — Alignment
Alignment: the ±5 mm that sets the kilovolts
The field runs as high as its narrowest gap allows — nowhere else.
Why does plate misalignment collapse ESP performance?
Because the automatic voltage controller limits the whole field to the spark-over voltage of its single narrowest point. In a 300 mm passage, one plate bowed 15 mm cuts the local clearance 10 %, drops attainable voltage by a similar order, and collection — which scales roughly with field strength squared — falls across the entire field, not just at the defect.
This is why erection and every rebuild close with a passage-by-passage survey: plates plumb and straight within ±5 mm over full height, discharge frames centred within the same tolerance. The arithmetic is unforgiving — the design gap of 150 mm from emitter to plate (in a 300 mm passage) is the insulation distance the transformer rectifier voltage was chosen for. Give away 10 mm of it and the field runs continuously spark-limited: the controller ramps, sparks, sets back, and average kV — the quantity that actually collects dust — sags. A field that should hold 70 kV mean at 400 mm spacing may idle at 55 kV with nothing wrong but geometry.

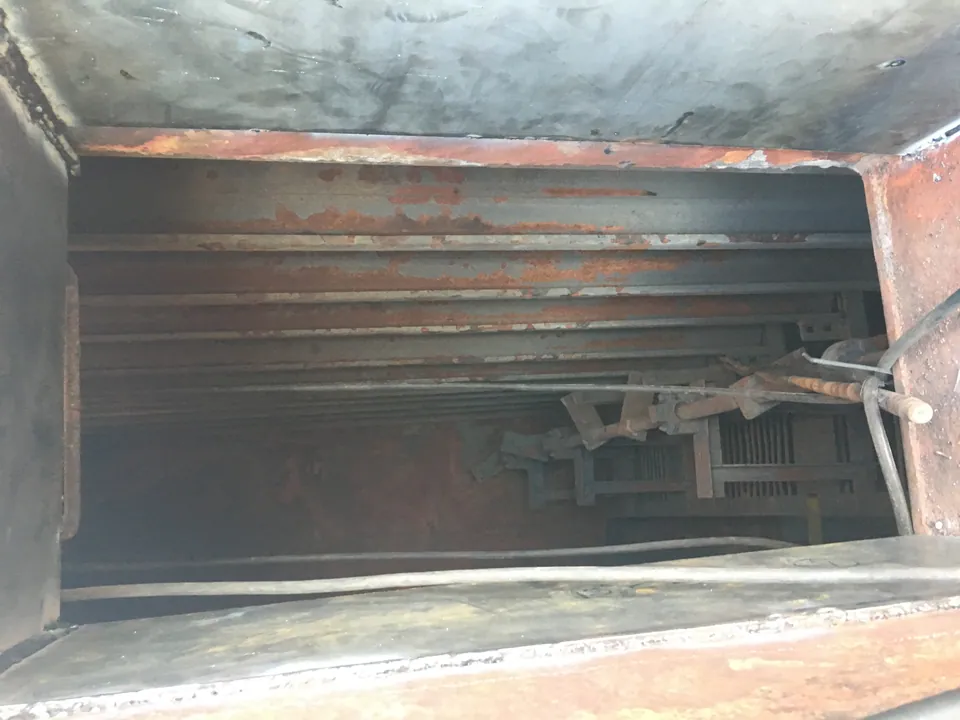

Common causes of lost alignment are mechanical, not electrical: bottom guides worn oval by years of rapping, hanger hooks stretched, heat distortion after a hopper fire, and dust bridges between plate and casing forcing panels sideways. All are findable in a dark-ESP inspection with a template and a plumb line, and all are correctable without new plates if the sheet itself is sound.
04 — Failure and replacement
Wear, corrosion, and when to replace
Plates fail slowly and locally — measure before deciding.
When should collecting electrodes be replaced rather than realigned?
Replace when the metal is gone, realign when it has merely moved. Thickness readings below about two-thirds of the original 1.2–1.5 mm sheet at the folds, perforation at the bottom edge, or rapping-bar connections torn loose call for new panels; bowing and displaced guides call for a mechanical rebuild at a fraction of the cost.
The wear map is predictable. Erosion concentrates in the inlet field, at the bottom third of the plate where gas velocity and dust concentration peak — high-silica bagasse and rice-husk ash are frankly abrasive. Acid-dewpoint corrosion attacks during shutdowns and low-load operation when plate temperature falls through the water and acid dewpoints; it shows as broad thinning with pitting at the folds where hygroscopic deposits linger. Chloride attack is the aggressive case: on palm-residue fuels and on cement clinker-cooler duty, KCl- and CaCl₂-bearing deposits sustain under-deposit corrosion that can perforate 1.5 mm sheet in a few seasons. For those duties we quote thicker sheet or upgraded material per project from the ash analysis. Mechanical fatigue appears at rapping-bar welds and hanger holes after decades of impact — cracks there dump rapping energy before it reaches the plate, so cleaning quietly degrades first.
Replacement does not require the original maker. Collecting plates are dimensional parts: given plate height, profile section, hole pattern and suspension detail — from drawings or site measurement — we roll-form interchangeable panels for other OEMs' precipitators and install them to the same ±5 mm survey we apply to our own, typically alongside a discharge electrode renewal and a check of the gas distribution screens, since a plate outage is the one time the casing is open end to end. Scope of this kind is handled under our ESP upgrade and rebuild services. CONFIRM: maximum single-piece plate length that can be shipped from the Samut Sakhon factory without splicing.
FAQ
Engineering questions, answered
What are ESP collecting electrodes made of?
Standard duty uses 1.2–1.5 mm carbon steel, roll-formed into stiffened C, sigma or ZT profiles that stay straight over 6–15 m of height at flue-gas temperatures up to 200 °C. Chloride-laden duties such as palm-residue firing or clinker-cooler service call for thicker sheet or corrosion-resistant grades, selected per project from the ash analysis.
Why is collecting-plate alignment held to ±5 mm?
Spark-over voltage is set by the narrowest point in each 300 or 400 mm gas passage, not the average. A plate bowed 10 mm forces the voltage controller to run the whole field several kV lower, and collection falls exponentially with field strength. ±5 mm keeps the electrical clearance — and the kV — the design assumed.
How long do collecting electrodes last?
On clean biomass duty inside the 10⁴–10¹¹ Ω·cm resistivity window, plates commonly outlast 15–20 years; the profiles wear fastest at the bottom edge and at rapping-bar connections. Chloride attack on palm or waste fuels and abrasive clinker-cooler dust shorten life substantially. Inspection at every outage, with thickness measurement on the inlet field, catches it early.
Can you replace collecting electrodes in another maker's ESP?
Yes — collecting plates are dimensional components, not proprietary electronics. From plate height, profile section, spacing and suspension details we roll-form replacements to drop into existing hanger and rapping hardware, restoring the ±5 mm alignment tolerance. Interchangeability is confirmed against site measurements or original drawings before manufacture, and alignment is verified passage by passage at installation.
What causes collecting electrode corrosion?
Two mechanisms dominate: acid-dewpoint corrosion when gas temperature falls below roughly 90–120 °C at shutdowns and low load, and chloride attack where fuel chemistry deposits KCl or NaCl on the plate — typical of palm residues and of clinker-cooler duty. Both thin the 1.2–1.5 mm sheet locally; perforation follows at the profile folds where deposits hold moisture.
