8–30 kg/kg
Circulation ratio, natural circulation
Boiler pressure parts · Furnace
Water wall: the furnace enclosure that is also the boiler's main evaporator
The water wall is the tube-and-fin enclosure of the furnace: it contains the flame, absorbs 40–50 % of the fuel heat, and generates most of the steam. Natural-circulation boilers run circulation ratios of 8–30 (kg water circulated per kg steam made). Arrow fabricates membrane panels to ASME IX welding qualification and re-tubes walls partially or completely.
40–50 % of fuel heat
Furnace heat absorbed by walls
OD 51–76 mm on 75–100 mm pitch
Typical panel tube pitch
SA 210 Gr A1 ≤ 425 °C metal
Panel tube material
01 — Function and construction
What the water wall is: furnace enclosure and main evaporator in one component
The wall that contains the flame is also the surface that makes most of the steam.

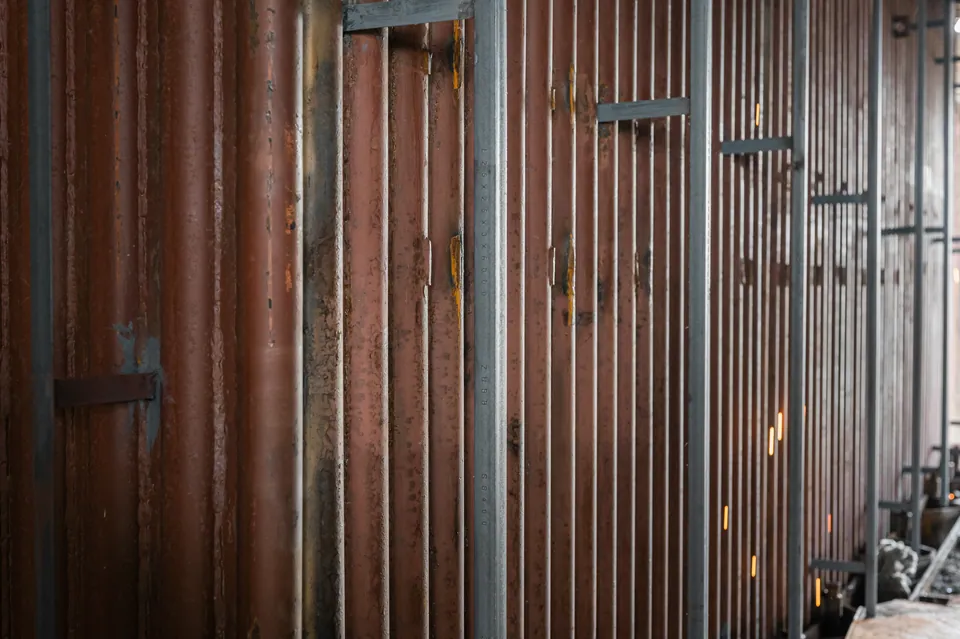

The water wall is the furnace enclosure of a water-tube boiler: vertical tubes, typically 51–76 mm OD on 75–100 mm pitch, joined into gas-tight panels that form the four furnace walls. Facing the flame, these panels absorb 40–50 % of the fuel's heat input by radiation and generate the majority of the boiler's steam — the furnace enclosure and the main evaporating surface are the same component. Water wall condition therefore governs both availability (a single tube failure shuts the boiler down) and efficiency (a distorted, leaking or slagged wall degrades furnace heat absorption). The water wall is engineered together with the rest of the boiler pressure parts, because furnace exit gas temperature — set by wall absorption — is the inlet condition for the superheater and every surface after it.
Three constructions exist. Membrane wall — the modern standard — joins adjacent tubes with a continuously welded steel fin bar (typically 6 mm thick), producing a gas-tight, self-supporting panel that needs no casing refractory: lighter, faster-cooling on shutdown, and immune to the casing corrosion that gas leakage causes. Tangent-tube walls place bare tubes almost touching, backed by sealing refractory and an outer casing; as the refractory degrades, furnace gas reaches the casing and corrodes it, and air in-leakage distorts combustion. Refractory-backed spaced-tube walls, the oldest type, expose part of the refractory to the flame and absorb correspondingly less heat. Most units older than about 35 years carry one of the two older constructions, and conversion to membrane panels is a standard element of a deep revamp.
02 — Circulation
How does water circulate through a water wall?
By density difference alone in natural-circulation boilers: cold water descends the unheated downcomers, and the steam–water mixture in the heated wall tubes, being lighter, rises back to the drum. The circulation ratio — kg of water circulated per kg of steam generated — runs 8–30, higher at lower pressure.
The arithmetic makes the margin visible. On the recurring 60 t/h design basis, a circulation ratio of 15 means 900 t/h of water moving around the furnace loop to make 60 t/h of steam; at the wall-tube outlet the mixture is only ~1/15 ≈ 7 % steam by mass. That surplus water is the safety margin: it keeps every point of the tube bore wet, so the metal is cooled by nucleate boiling — heat-transfer coefficients of tens of kW/m²·K — and tube metal stays within roughly 10–30 °C of saturation temperature even in front of the flame.
The margin fails at departure from nucleate boiling (DNB): if local heat flux is too high or local flow too low, a steam film blankets the bore, the heat-transfer coefficient collapses by an order of magnitude, and metal temperature jumps hundreds of degrees within seconds — the short-term overheat failure. Circulation design therefore checks every parallel tube, not the average: heated-length differences, bends around burner openings, and orifice distribution at the lower headers all shift flow between tubes, and the worst tube at the worst load sets the design. This is why any revamp that raises heat flux — a fuel change, a grate upgrade, added heat input — requires the circulation calculation to be redone, not assumed.
03 — Panel fabrication
Membrane panel fabrication: where quality is decided
A panel is thousands of metres of fin weld; the discipline is in the sequence.
A membrane panel is built from tube and fin bar joined by continuous fillet or fused welds — on a 20-tube × 12 m panel, roughly 460 m of fin weld per side. Arrow fabricates panels at its Samut Sakhon factory with submerged-arc or GMAW fin welding under welding procedure specifications (WPS) qualified to ASME Section IX, with supporting PQRs and qualified welders per joint type. Two things separate a good panel from a problem panel:
Distortion control. Continuous welding pours heat into the panel asymmetrically; without balanced welding sequence, back-step technique and restraint jigging, panels bow and twist. Flatness matters because a bowed panel welded into a flat wall carries locked-in stress at the closure welds and misaligns soot-blower lanes. Panel flatness and camber are checked on the fabrication bed against the shop acceptance tolerance — CONFIRM: Arrow shop flatness/camber acceptance values (mm per m and per panel length).
Weld integrity at openings. Burner throats, soot-blower openings, manholes and observation ports interrupt the tube pattern with bent tubes and shaped fin plates; these are the highest-stress details in the wall and receive dimensional templating and NDT beyond the plain panel field. Tube butt welds within panels are made and radiographed or ultrasonically tested in the shop, where position and access are controlled — every weld moved from the field to the shop is a measurable reduction in leak risk at hydrotest. Materials are SA 210 Gr A1 tube (metal limit 425 °C — ample, since wall metal rides near saturation) with fin bar in matching carbon steel; design and hydrotest follow ASME Section I or EN 12952-3, with JIS practice on Japanese-code plants and code-stamp scope stated per project.
04 — Failure modes
Why do water wall tubes fail?
Four dominant modes: fireside erosion at soot-blower lanes and ash impingement zones; internal caustic gouging or hydrogen damage under deposits; and short-term overheat at DNB. Each leaves a distinct metallurgical signature, so the failed tube itself — sectioned and examined — names the cause before money is spent re-tubing.
Fireside erosion. High-silica biomass ash (rice-husk ash is 85–90 % amorphous silica) cuts metal wherever local velocity concentrates: soot-blower lanes where the cleaning jet entrains ash against the wall, and impingement zones opposite gas bypass gaps. Wastage is local and predictable in location — which is what makes the survey approach below effective. Shields and weld overlay protect known lanes.
Caustic gouging and hydrogen damage. Both start with internal deposits concentrating boiler water against the metal. Under-deposit concentration of caustic dissolves magnetite and gouges smooth, irregular craters; hydrogen damage goes further — atomic hydrogen from under-deposit corrosion diffuses into the steel, reacts with carbides to form methane at grain boundaries, and embrittles the wall until a thick-walled window blows out at full thickness. Hydrogen damage is the more dangerous finding because the tube can fail with little visible wall loss; it mandates chemical cleaning and a hard look at water chemistry excursion records, not just a tube swap.
Short-term overheat. The DNB failure described above: a thin-lipped, fish-mouth rupture with hard, untempered microstructure, telling you the tube saw hundreds of degrees of excursion in seconds — a circulation or blockage problem, never a corrosion problem.
05 — Survey, re-tubing and revamp
Wall survey, re-tubing scope and the 45-year-old boiler
Replace the panels that are finished; re-engineer the boiler around the parts that are not.
Re-tubing scope is decided by measurement, not by age. An ultrasonic wall-thickness survey grids the furnace — several hundred to a few thousand points, concentrated at soot-blower lanes, burner levels and known impingement zones — and maps remaining wall against the retirement thickness from the ASME I / EN 12952 minimum-wall calculation. The outcome is a scope drawing, not an opinion: which panels are window-repaired, which lower-furnace band of 2–4 panels is replaced, and where a full-wall replacement is actually cheaper than serial partial repairs once access scaffolding is priced in.
| Scope | Boiler capacity | Design pressure | Metal temperature | Material grade |
|---|---|---|---|---|
| Membrane panels, new or replacement | 30–170 t/h | 25–68 barg | ~230–290 °C (near saturation) | SA 210 Gr A1 + carbon-steel fin bar |
| Membrane panels, biomass power | 170–250 t/h | 65–110 barg | ~280–320 °C | SA 210 Gr A1 / Gr C |
| Tangent-to-membrane conversion | 30–120 t/h (older units) | as existing, re-verified | per circulation check | SA 210 Gr A1 |
| Erosion protection | all classes | — | lane-local | Weld overlay / bolted shields |
The limiting case is the old boiler with no paperwork. Arrow's revamp capability covers units up to 45 years old where original drawings and calculations have been lost: the existing boiler is reverse-measured, pressure parts are re-engineered to current code editions, circulation is recalculated, and the furnace is rebuilt — typically with membrane panels replacing tangent-tube construction — together with the economizer and back-end surfaces, bringing the unit to modern efficiency standards while the drum, structure and foundations that pass remaining-life assessment stay in service. Done this way, a revamp avoids full boiler replacement and the civil work, permitting and outage duration that come with it. Wall work is coordinated with the pressure parts and superheater scope so header positions and buckstay attachments are engineered once. Reference classes for this duty range include a 170 t/h bagasse-fired sugar-mill boiler in Thailand, a 250 t/h biomass power unit in Thailand and a 230 t/h sugar-mill unit in Colombia. Guaranteed figures are stated per project after the technical assessment, on a stated basis.
FAQ
Engineering questions, answered
What is a water wall in a boiler?
The water wall is the furnace enclosure built from vertical tubes joined by welded fin bars into gas-tight membrane panels. It absorbs 40–50 % of the fuel's heat by flame radiation and generates most of the boiler's steam, with water circulating naturally at 8–30 kg per kg of steam produced.
What is the difference between membrane wall and tangent tube construction?
Membrane walls join tubes with continuously welded fin bars, giving a gas-tight, self-supporting panel needing no refractory backing. Tangent-tube walls place bare tubes nearly touching against an outer casing with sealing refractory — an older construction that leaks furnace gas as the refractory degrades. Refractory-backed spaced-tube walls are older still.
Why do water wall tubes fail?
The main modes are fireside erosion at soot-blower lanes and ash impingement zones, internal caustic gouging or hydrogen damage under deposits when water chemistry drifts, and short-term overheating when departure from nucleate boiling occurs. Each leaves a distinct signature, so failed-tube metallography identifies the true cause before re-tubing.
Can a water wall be partially re-tubed instead of replaced?
Yes. Wall-thickness surveys with several hundred to a few thousand ultrasonic points map wastage, and only panels below retirement thickness are replaced — often a lower furnace band of 2–4 panels rather than the whole wall. Shop-fabricated panels with ASME IX qualified welds are window-welded into the existing wall.
Is it worth revamping a 45-year-old boiler?
Often, yes. If the drum and structure pass remaining-life assessment, re-engineering the pressure parts — water walls, superheater, economizer, air heater — restores efficiency to modern standards at a fraction of replacement cost. Arrow re-engineers such units from limited surviving documentation, reverse-measuring the existing boiler where drawings are lost.
